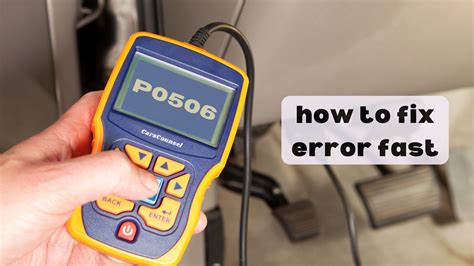

How do I fix error code P0506?

Author

Avery Gonzales

Updated on March 03, 2026

How do I fix error code P0506?

What repairs can fix the P0506 code?
  1. Replacing idle air control motor.
  2. Repairing any vacuum leaks.
  3. Replacing idle air control valve.
  4. Cleaning dirty throttle body.
  5. Replacing defective throttle body.
  6. Clearing blockage in the air intake or exhaust.
  7. Replacing a defective PCV valve.
  8. Replacing the power steering pressure switch.

Furthermore, how do I reset my idle air control valve?

Turn the ignition ON and leave on for several seconds then turn the ignition OFF to allow the ECM to reset the IAC valve. You should be good to go.

Beside above, how do I fix idle control system malfunction?

  1. Replacing the IAC valve and cleaning the throttle body and passages.
  2. Removing carbon from throttle body and IAC passages and clean IAC.
  3. Repairing a vacuum leak in the engine intake manifold vacuum system or gaskets.

Beside above, what can cause a P0506 code?

Error Code P0506 is defined as Idle Air Control System RPM Lower Than Expected. It means the Revolution Per Minute (RPM) of the idle control system is lower than expected, a problem usually caused by defective idle air control motor and vacuum leaks, which leads to loss of power in the engine's performance.

How do you know if your idle air control valve is bad?

One of the most common symptoms associated with a problematic idle air control valve is irregular idle speed. If the valve fails or has any issues it can cause the idle speed to be thrown off. This may result in an unusually high or low idle speed, or in some cases a surging idle speed that repeatedly climbs and falls.

How do I fix code P0507?

What repairs can fix the P0507 code?
  1. Replacing or cleaning the idle air valve.
  2. Repairing the intake air leak.
  3. Repairing the charging system.
  4. Cleaning the throttle body.
  5. Replacing the power steering pressure switch.

Can you drive with a bad idle air control valve?

Technically, you may be able to drive with a bad IAC—but you should not continue doing so. A bad IAC can potentially lead to stalling, which can compromise vehicle safety. Plus, you won't pass a state emissions test if the check engine light is on due to a bad IAC.

Where is the idle control sensor located?

Locating the Idle Air Control Valve

The IACV is usually located on the intake manifold near the back of the throttle body.

How do I clean my idle air control valve without removing it?

How To Clean Idle Air Control Valve Without Removing It
  1. Prepare the working area.
  2. Locate the idle air control valve.
  3. Remove the filter box and the air duct.
  4. Disconnect the clamps that connect the air duct to the throttle body.
  5. Locate the passage to the idle air control valve.
  6. Spray the hole with throttle body cleaner.

Can you clean idle air control valve?

How do you clean an IAC valve? After relocating the IAC valve, you need to unscrew it and detach all the wires. You can clean it by soaking it in gasoline and blowing compressed air into it. Then, reattach it with the screws and reconnect the wires.

How do I fix code P1101?

What repairs can fix the P1101 code?
  1. Replace or repair any faulty, damaged, or loose wiring, connectors, or components within the MAF sensor harness.
  2. Clean or replace the air filter if it is dirty.
  3. Clean the MAF sensor with specialized cleaner.
  4. Repair any leaks within the vacuum system.

What is the function of IAC valve?

The idle air control (IAC) valve is located on the throttle body of fuel-injected engines, where it works with the vehicle's ECU to electrically regulate airflow to the engine to ensure smooth idling.

How is P0171 diagnosed?

How does a mechanic diagnose the P0171 code? Assuming that no other trouble codes exist, a mechanic may diagnose the P0171 code by checking the engine for vacuum leaks with a vacuum gauge and checking the fuel pressure with a fuel pressure gauge.

What does po506 mean?

Diagnostic Trouble Code (DTC) P0506 stands for “Idle Air Control System RPM Lower than Expected.†It means that your powertrain control module (PCM) has detected an engine idle speed lower than the specified revolution per minute (RPM) for a specific amount of time.

How do I fix code p050a?

How to Fix
  1. Repair or replace damaged, open, or shorted connectors, wires, or harness in the IAC.
  2. Clean the IAC valve off of carbon buildup.
  3. Replace IAC motor.
  4. Replace IAC valve.

What is code P1400?

DTC P1400: Cold Start Emission Reduction Control System. Circuit/System Description. The catalytic converter must be warmed to efficiently reduce the emissions. The cold start strategy is to reduce the amount of time it takes to warm the catalytic converter.

How much does it cost to fix an idle air control valve?

When the engine is cold, the IAC valve helps to get it started. If it breaks down on you or starts to malfunction, then you are going to have to get it replaced. The cost of that, on average, will be between $115 and $500. You will likely pay about $70 for labor and anywhere from $45 to just over $400 for parts.

Can I drive with a P0505 code?

Trouble code P0505 should be diagnosed and repaired as soon as possible. Not recommended, however, you may drive your vehicle while trouble code P0505 is present unless the engine stall or stumbling is is severe enough to hinder proper vehicle operation. Erratic or lack of idle control may be noticed.

What does idle control system malfunction mean?

The code P0505 - Idle Control System Malfunction means that the engine computer cannot regulate the idle speed. The symptoms present with the code P0505 may include difficulty starting, hesitation, stalling, fluctuating idle, as well as too high or too low idle speed.

How do you diagnose IAC valve?

Disconnect the IAC connector for a couple seconds while your engine is idling. If your engine idle didn't change, you can suspect it to be the IAC. If it is working properly, unplugging it would cause your idle to freak out. Also check the wires going to the IAC connector.

What does code po700 mean?

Many cars have a control module for the automatic transmission called the transmission control module (TCM). The trouble code P0700 is set whenever the TCM detects a malfunction with the transmission controls.

How do I test a idle air control valve with a multimeter?

Testing and Cleaning the Idle Air Control Valve
  1. Open the hood of your vehicle.
  2. Pull the electrical plug off the control valve.
  3. Take out the idle control valve and flip it over.
  4. Take your voltmeter and set it to “Ohms.â€

What can be done via the scan tool to ensure correct idle speed control?

GENERAL MOTORS IDLE SPEED CONTROL

The diagnostic procedure involves disconnecting ISC motor, then starting the engine to see if the idle speed increases (it should). Turn the engine off, reconnect IAC and start the engine again. This time the idle speed should return to normal.

What happens if idle air control valve is stuck open?

An obstructed or stuck-shut IAC will result in a rich air-fuel ratio at idle, so the engine will start very easily while cold and then die suddenly after a slight puff of black tail-pipe smoke. A stuck-open IAC might start fine while warm and may continue to run if the engine reaches high-enough RPM.

How much does it cost to replace an air control valve?

The replacement cost of an idle control valve is anywhere from $120 to $500. The cost of the parts alone will be between $70 and $400+, depending on the make and model of your vehicle. The labor cost should only be around $50 to $100 because it doesn't take that long to remove and replace the old idle control valve.

What are the symptoms of a bad throttle positioning sensor?

What Are The Symptoms and Signs Of a Failing Throttle Position Sensor?
  • Lack Of Power. If your engine isn't getting the fuel it needs, or is getting too much, you'll notice that it doesn't seem to be accelerating as it should be.
  • Trouble Accelerating.
  • Uneven Idle.
  • Check Engine Light.

Can a bad idle air control valve cause a misfire?

The cause is often a problem in the idle air control system. The first thing to check is the intake vacuum with a vacuum gauge. An EGR valve that is leaking can also act like a vacuum leak and cause a random misfire.
